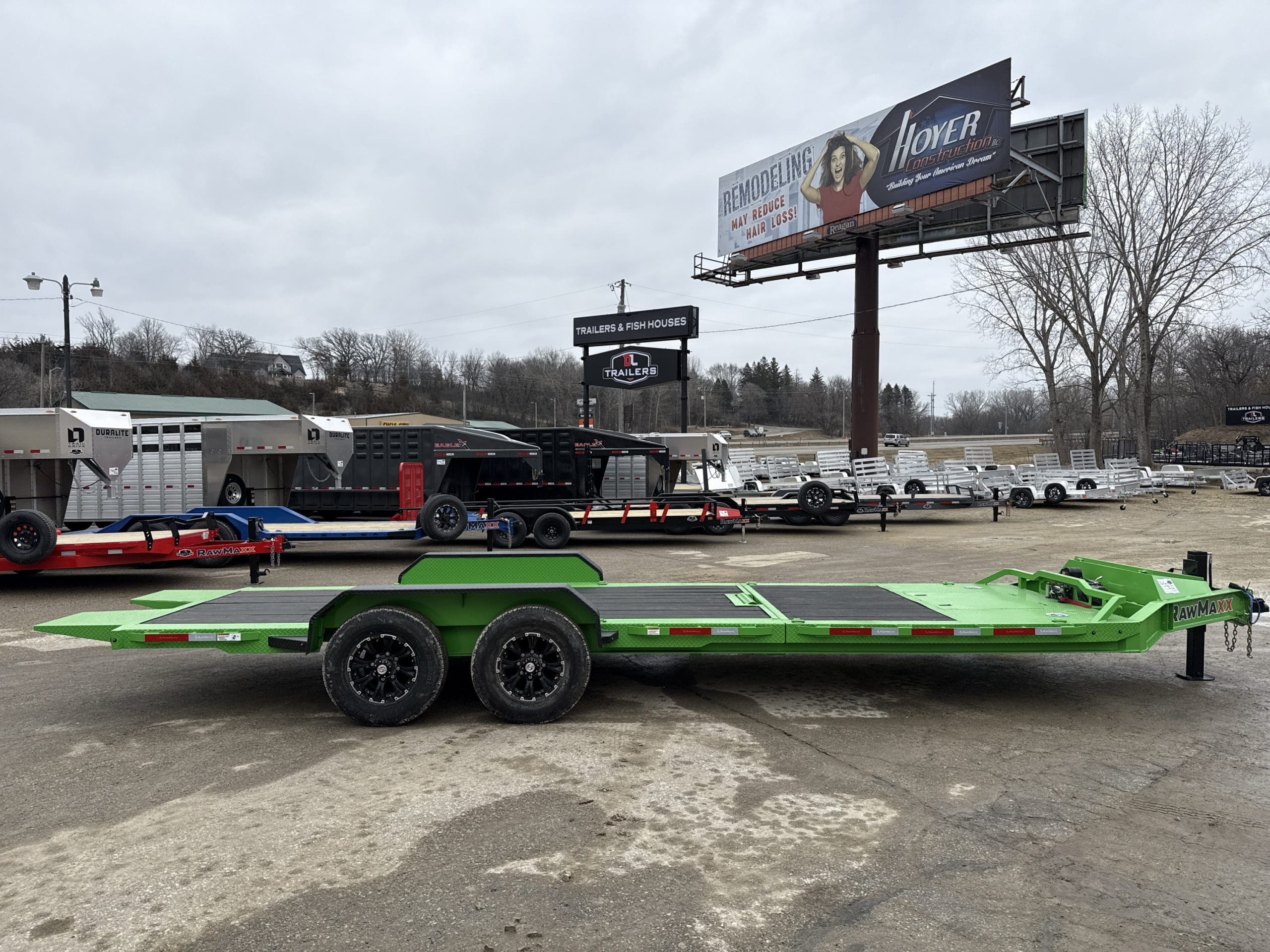

RAWMAXX G7X 24X83 GRAVITY TILT BED 8FOOT STATIONARY 16 FOOT TILT 2-7000LB AXLES RO1766

Balanced

When loading speed, balance, and simplicity matter most, the RawMaxx G7X BP delivers. Available in 20’, 22’, and 24’ lengths, this gravity tilt bumper pull is rated at 14,000 lbs. GVWR with over 11,600 lbs. of usable load capacity, making it an ideal solution for hauling vehicles, equipment, and machinery without the need for ramps or hydraulics.

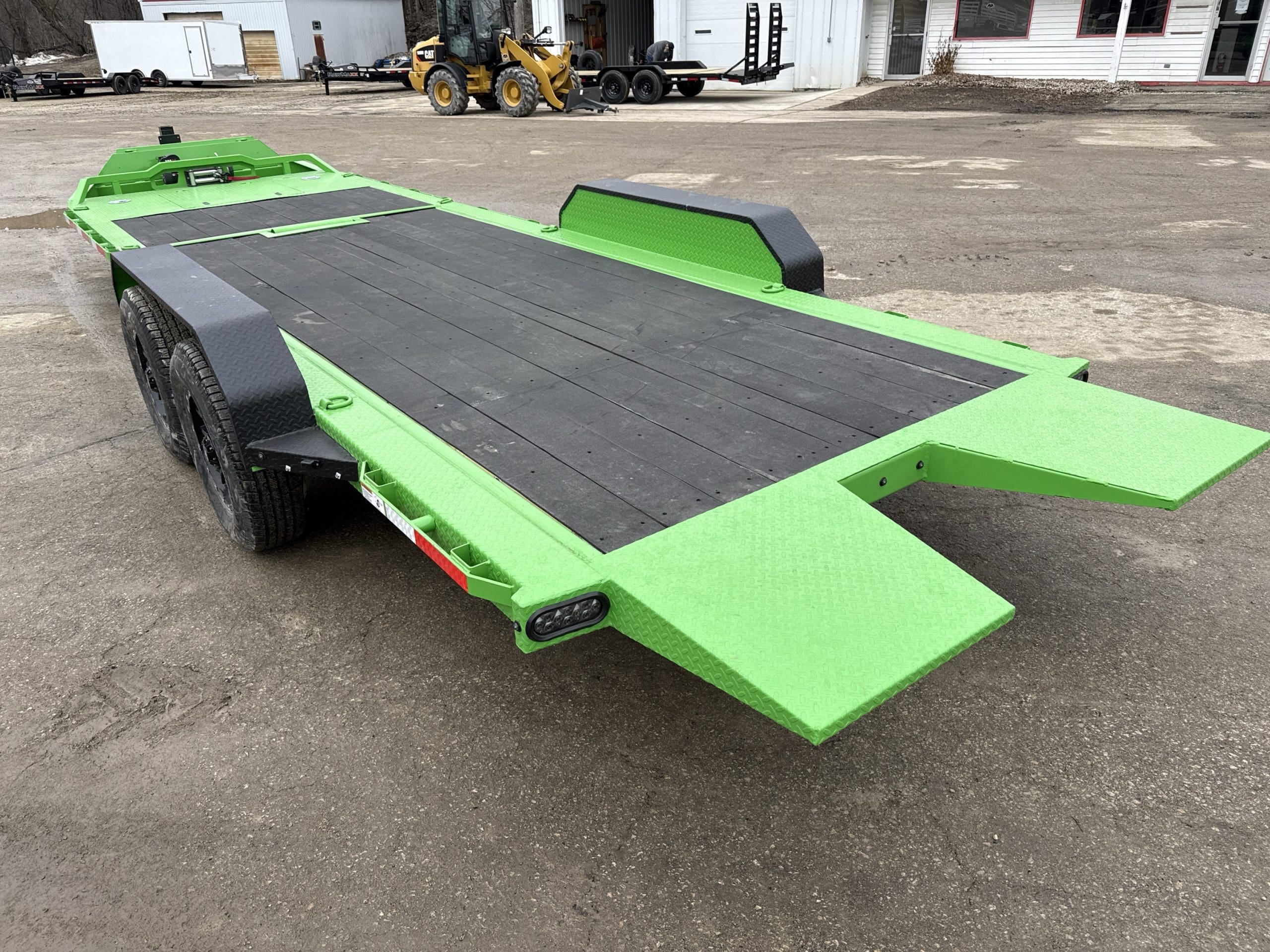

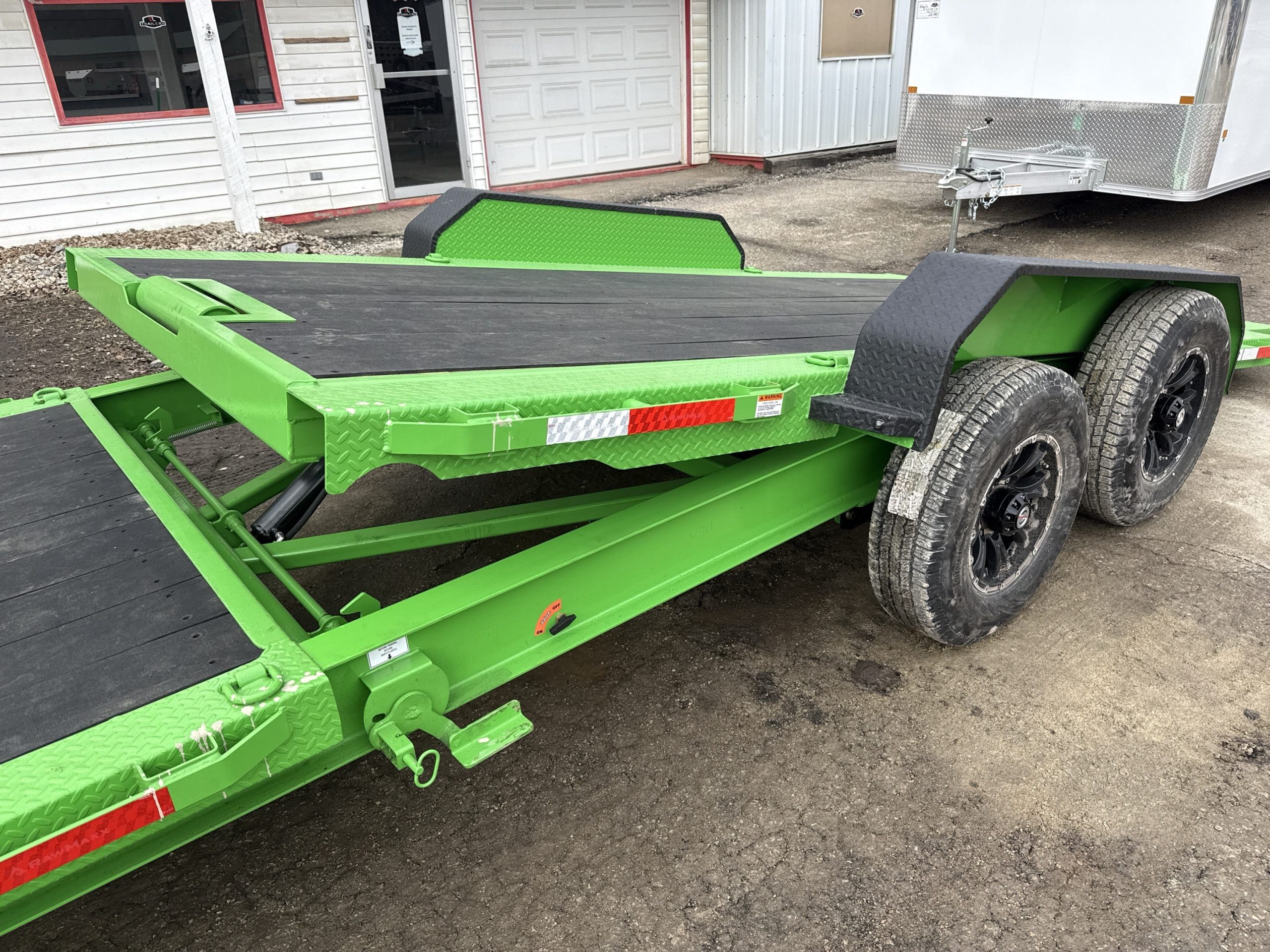

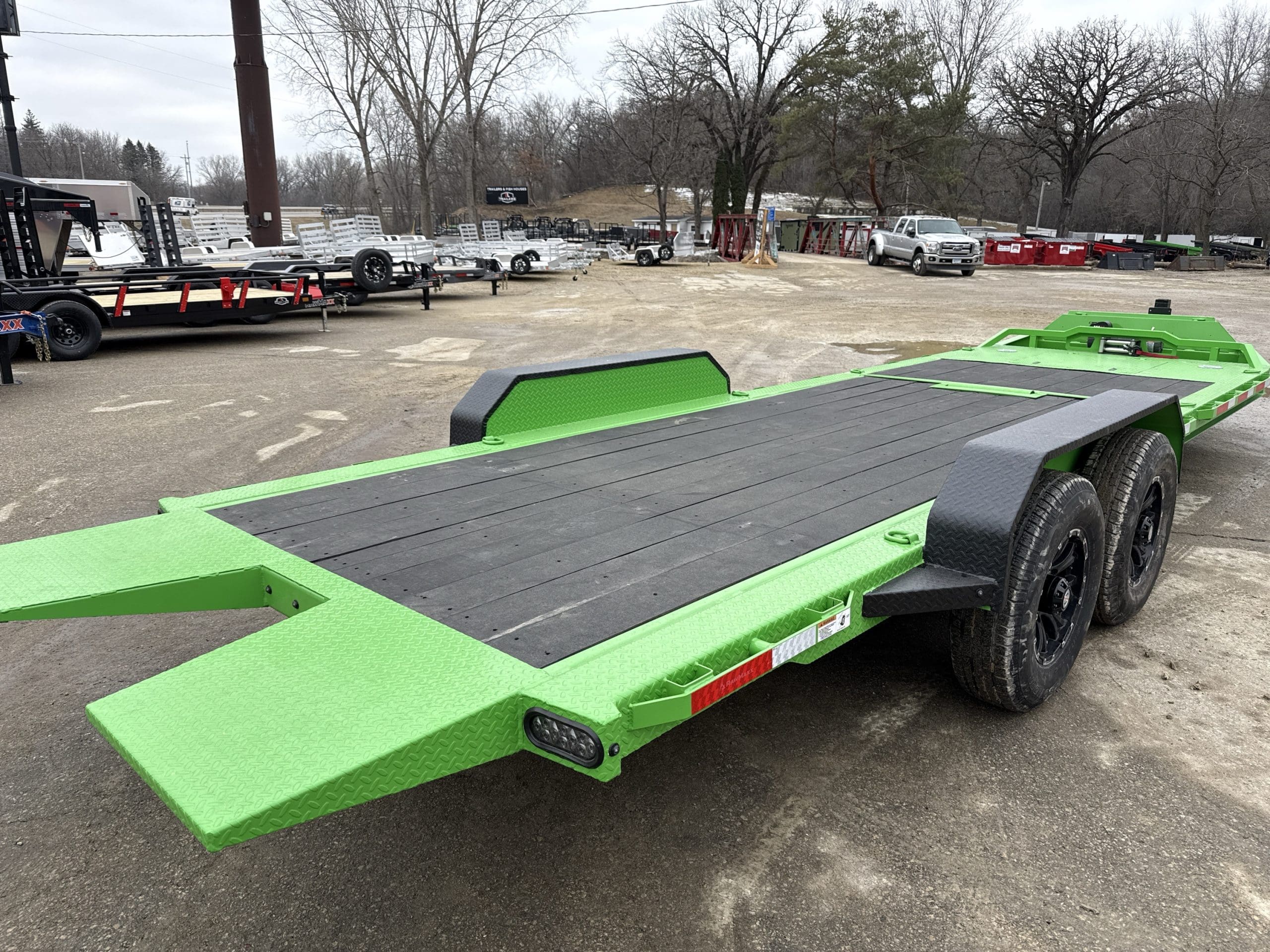

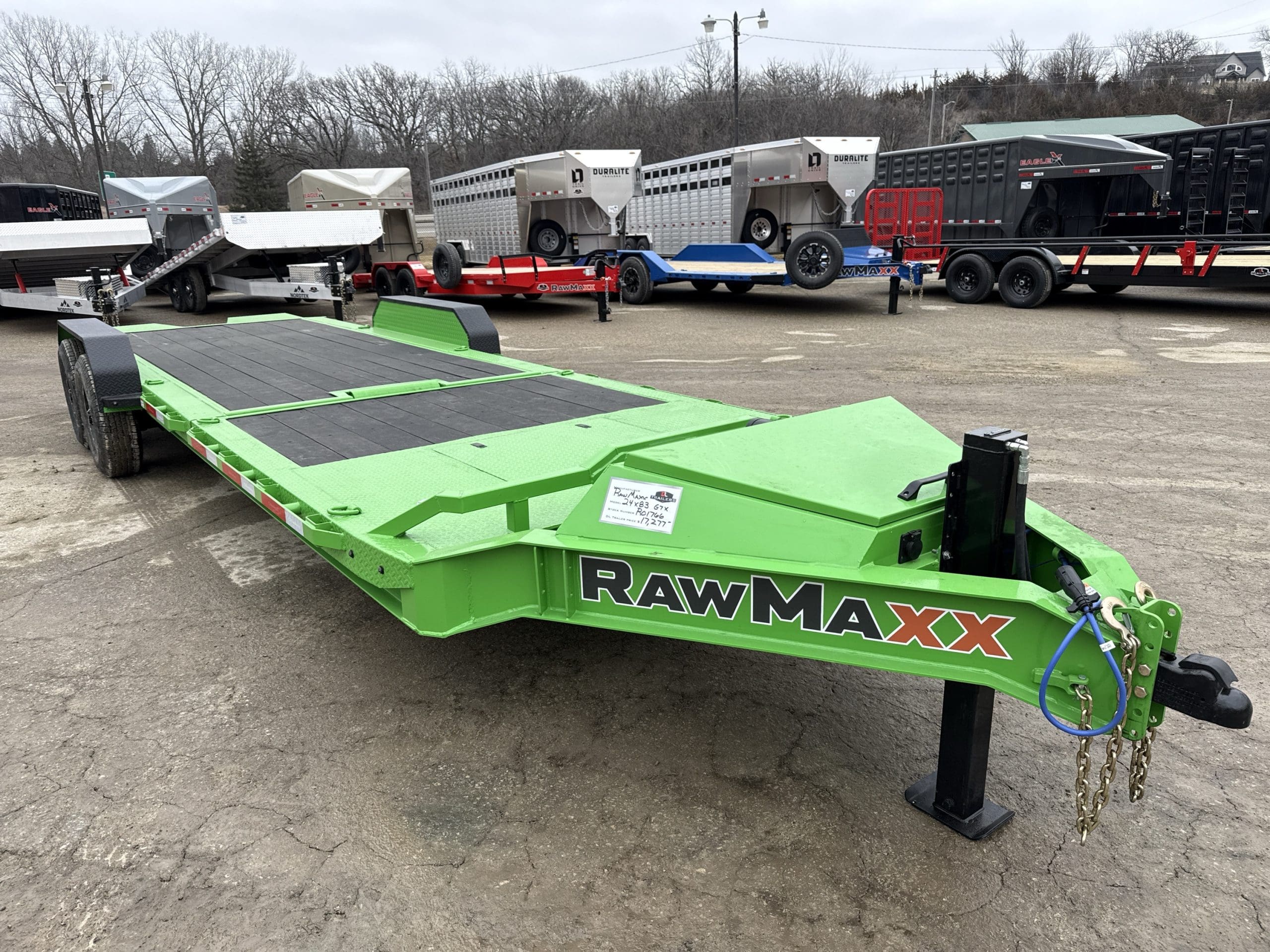

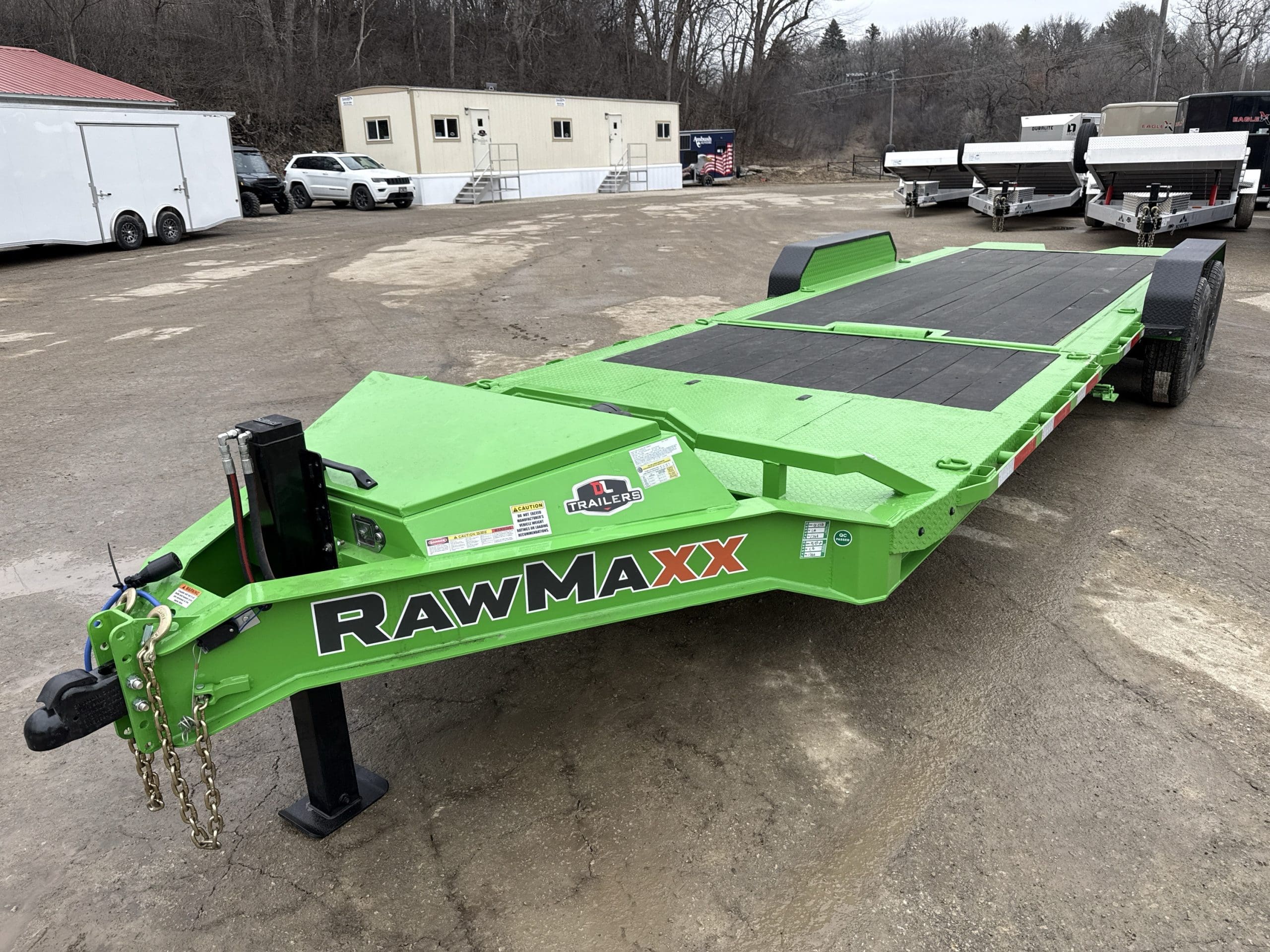

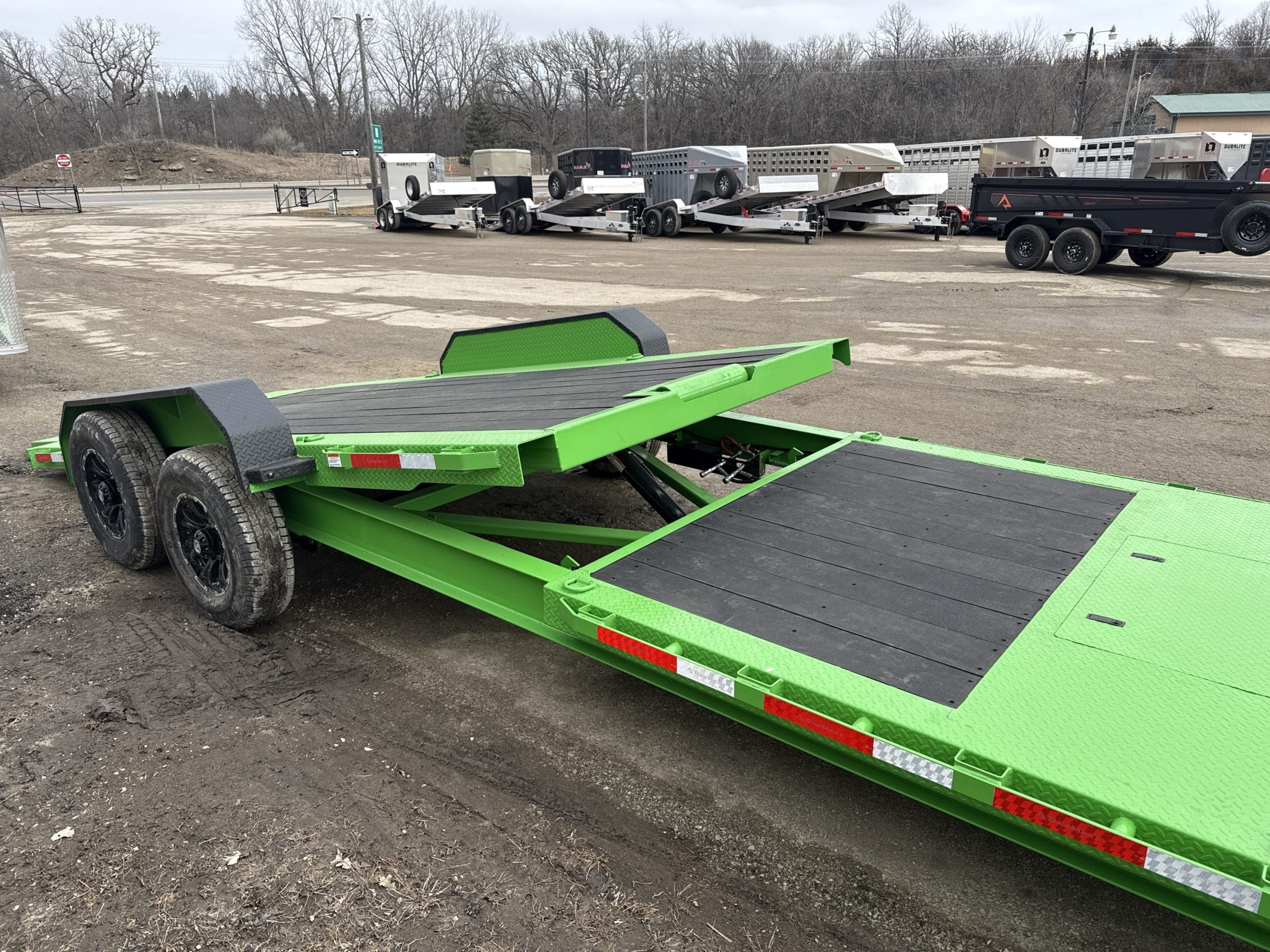

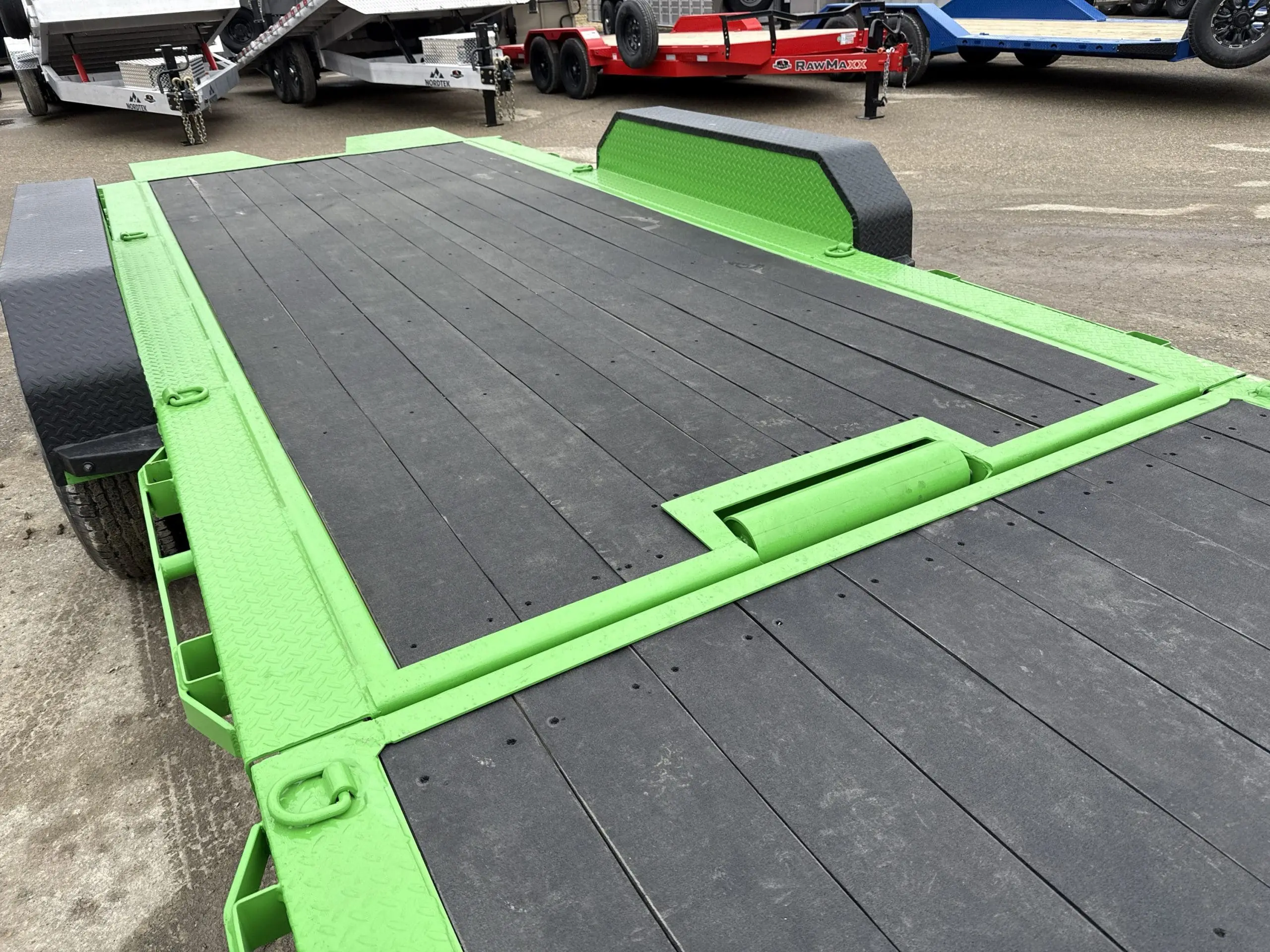

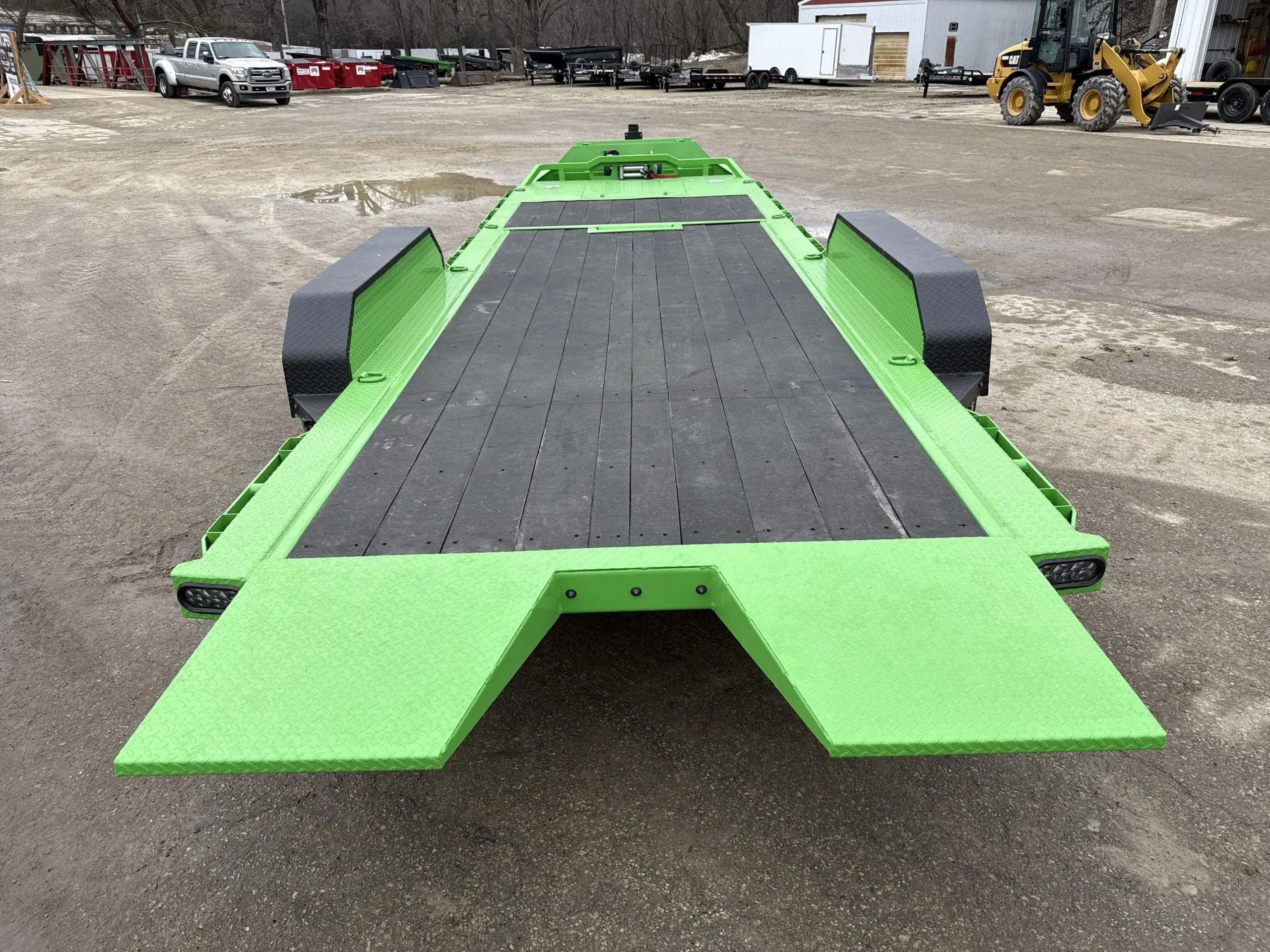

Built on an 8″ x 13 lb. I-beam frame with 3″ channel cross-members on 16″ centers, the G7X BP offers the strength and rigidity you expect from RawMaxx. A 4’ stationary front deck paired with a 16’ gravity tilt deck creates a naturally balanced platform that tilts smoothly under load and settles flat when secured. The 11° tilt angle allows for low-clearance loading while maintaining fast operation and minimal maintenance.

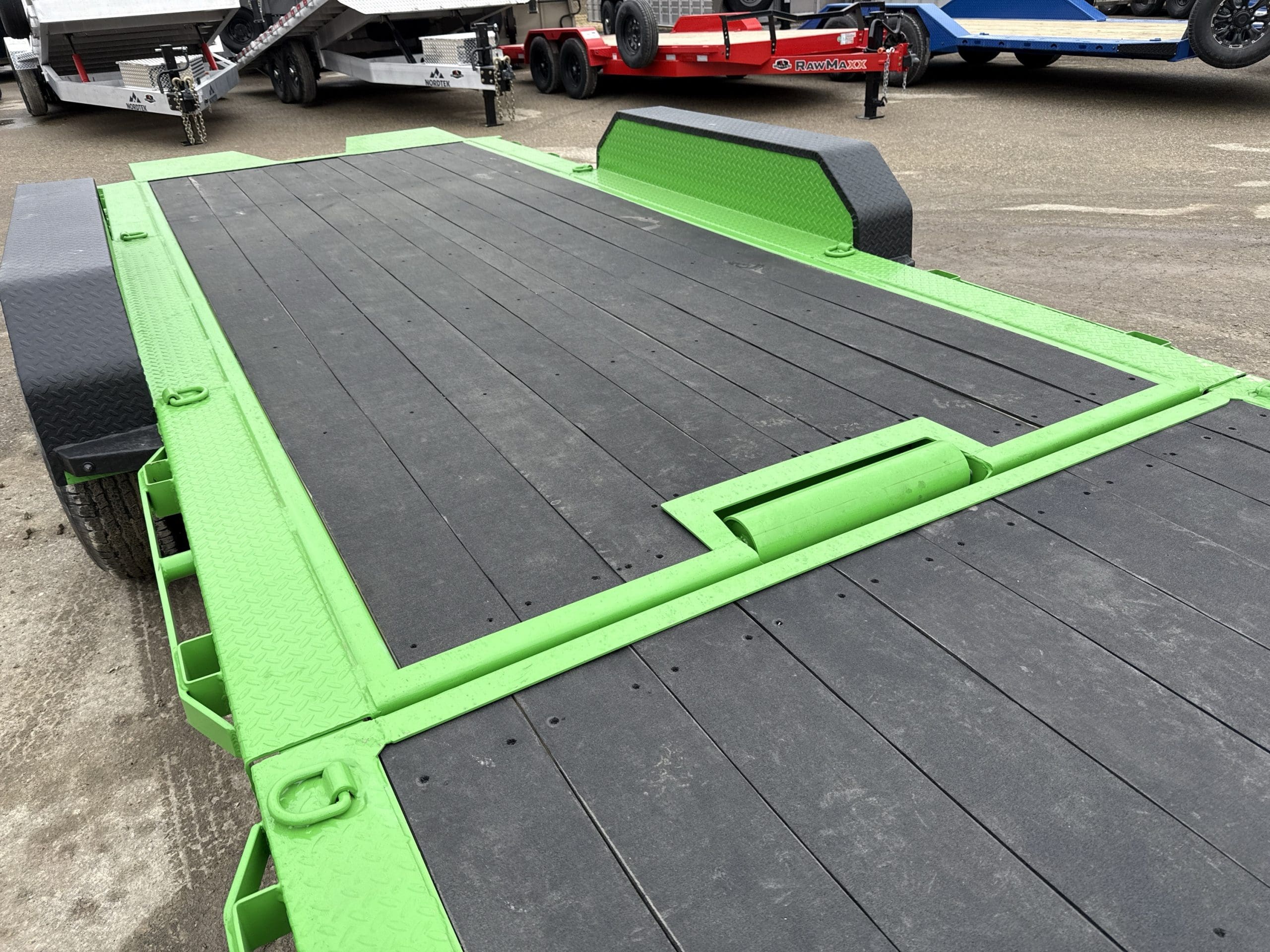

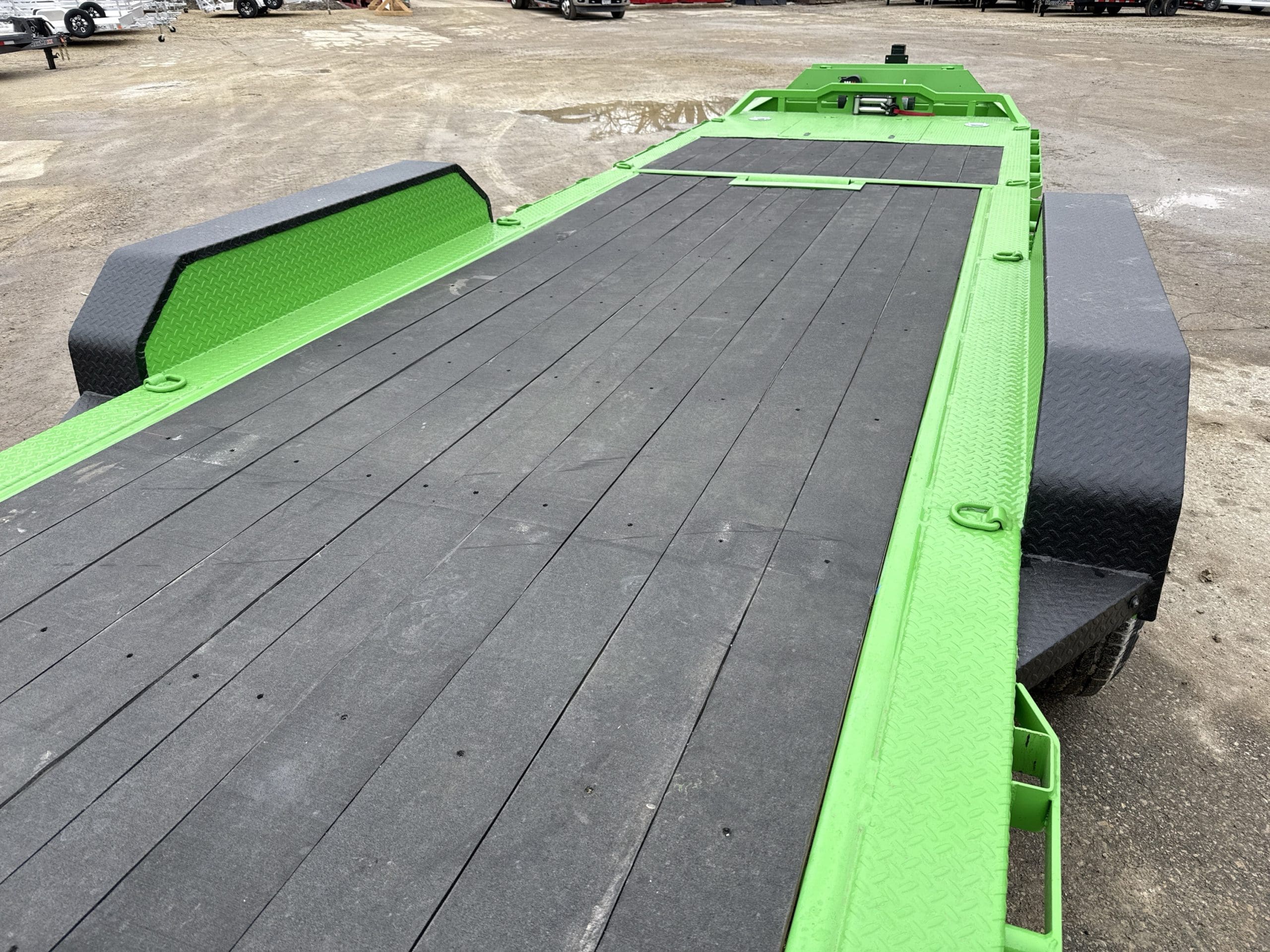

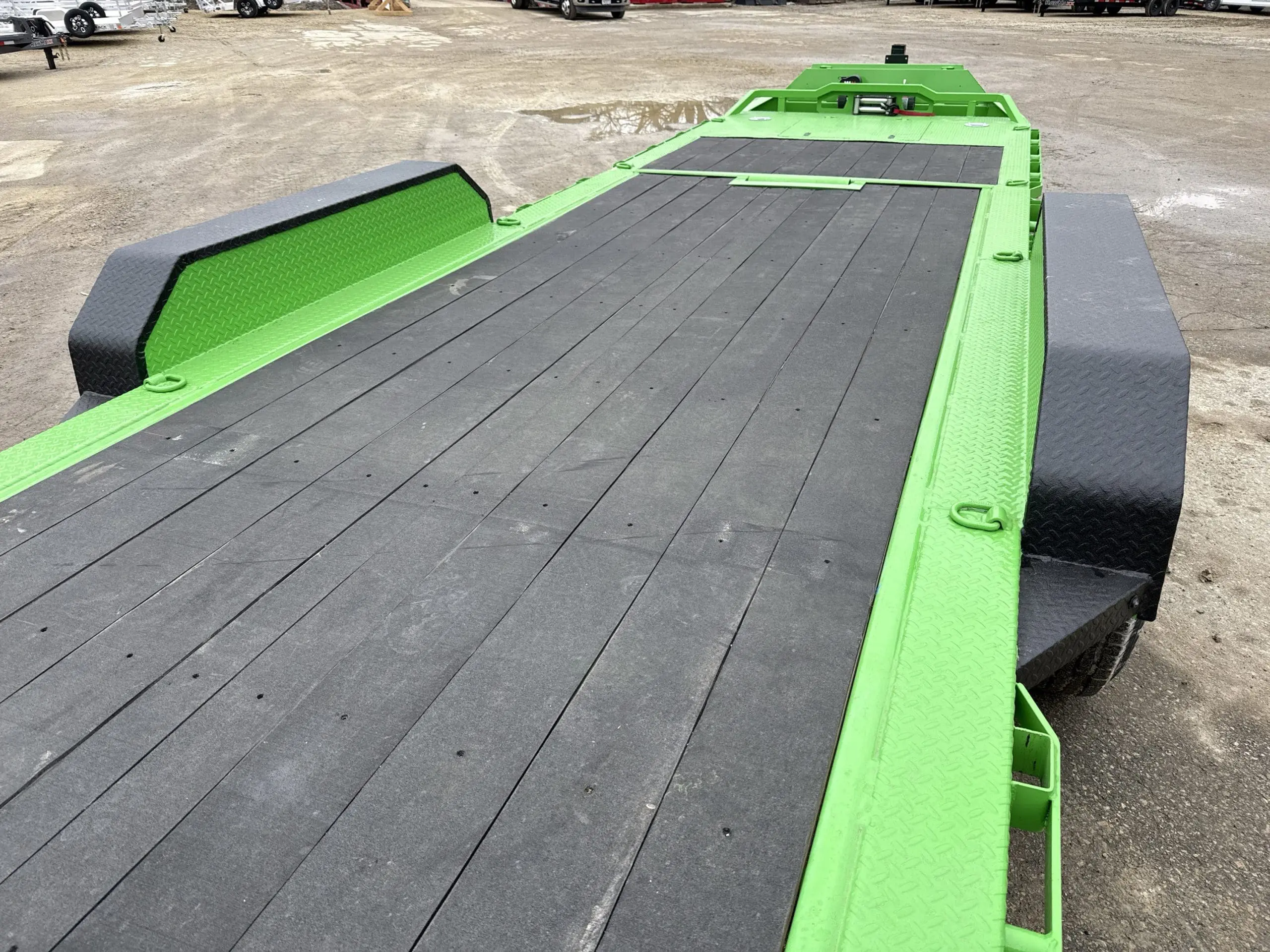

A 2” treated lumber deck, 12-gauge steel fenders, formed tread plate side perimeter, and integrated rub rail with stake pockets and chain spools give the G7X BP durability where it counts. Inside the fenders, welded D-rings and swivel D-rings at the front corners provide flexible tie-down options for a wide range of loads.

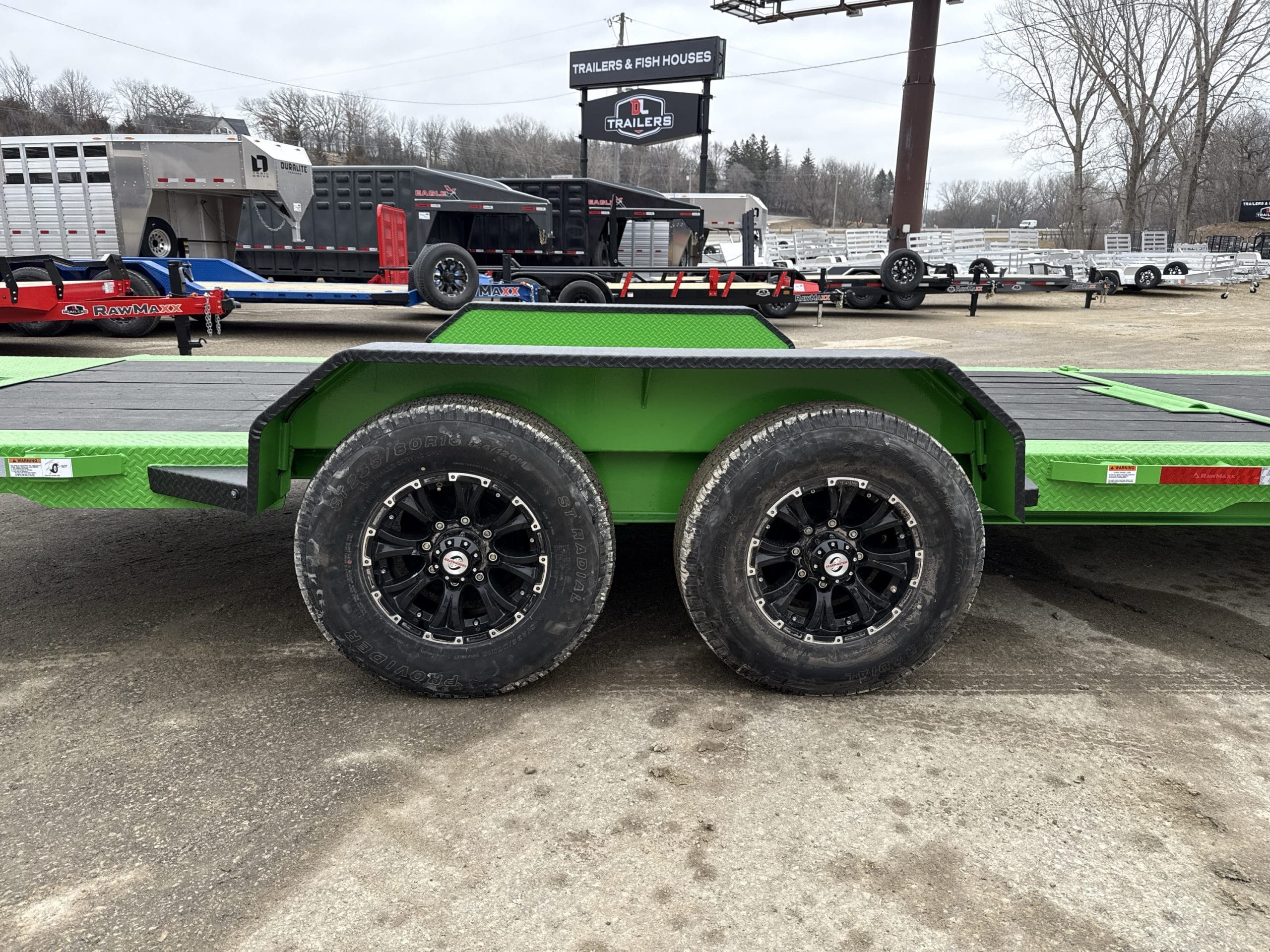

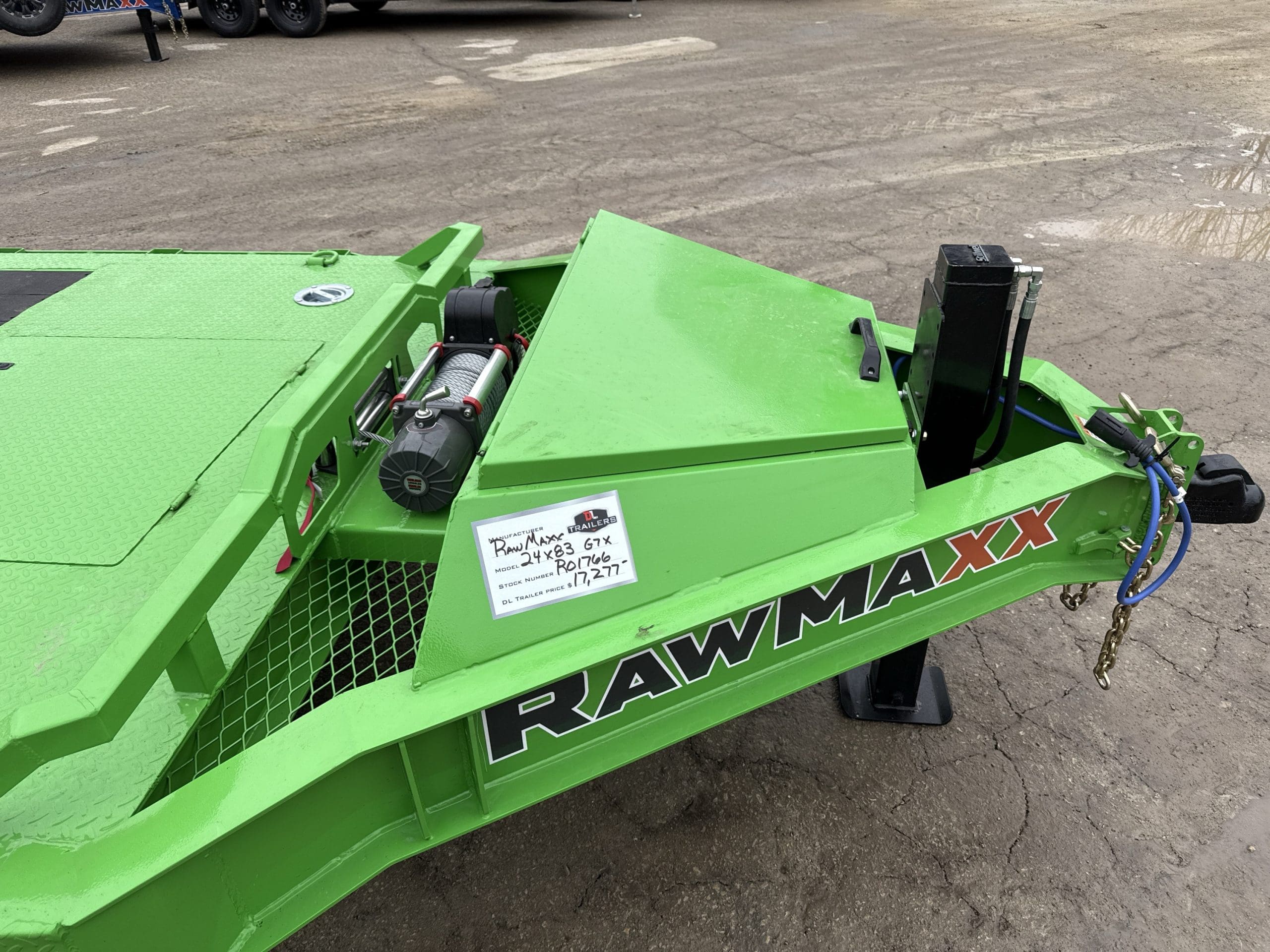

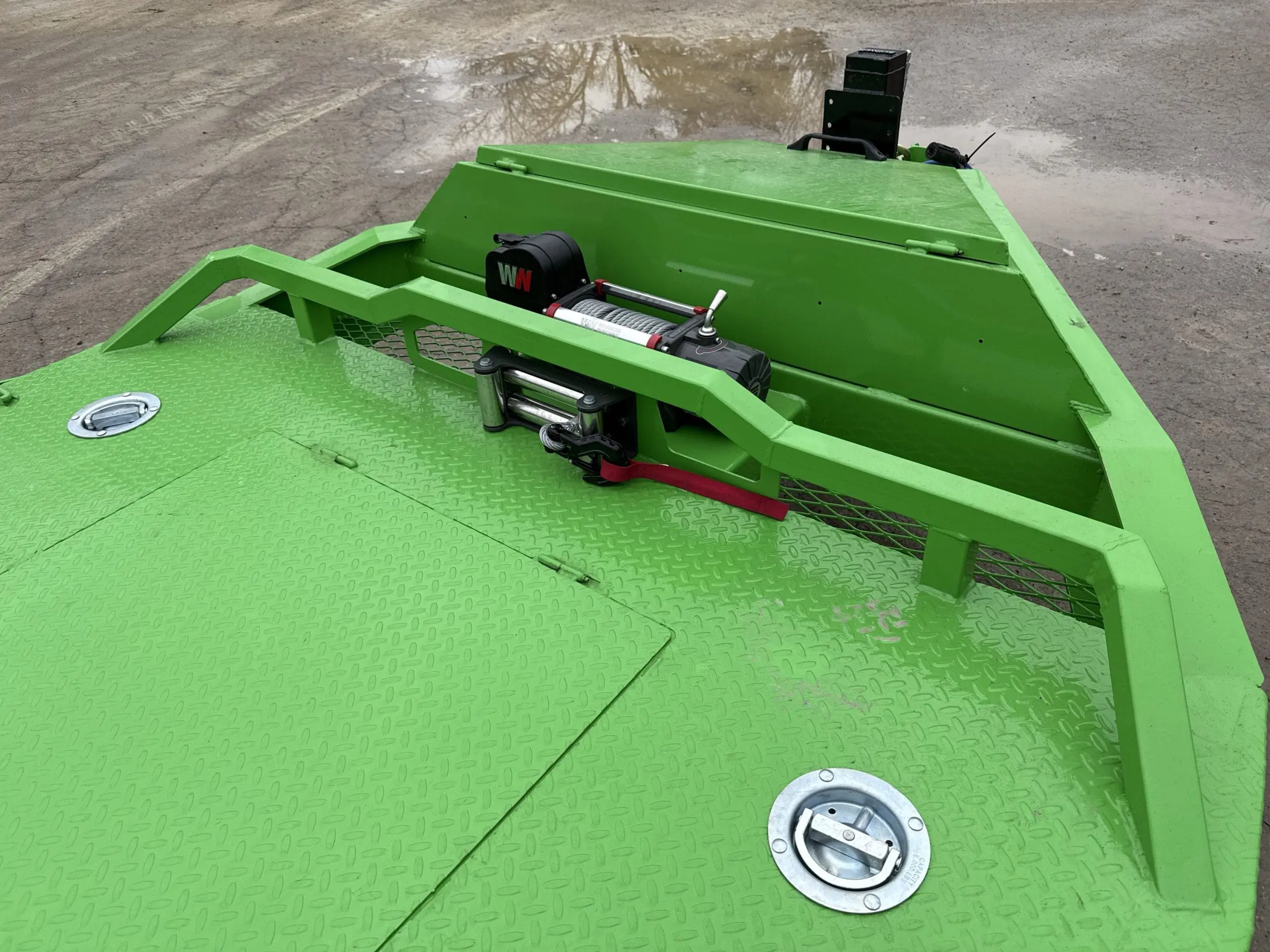

Running on dual 7,000 lb. torsion axles with electric brakes, ST235/80R16 10-ply tires, and all-weather wiring with DOT-approved LED lighting, the G7X BP delivers a smooth, controlled ride mile after mile. With available upgrades such as 8K torsion axles, steel flooring, an electric winch, a hydraulic jack, and aluminum wheels, it’s easy to tailor the trailer to your exact needs.

The RawMaxx G7X BP — balanced, efficient, and built to make loading easier without sacrificing strength.
