RDX GN
The Gooseneck Roll-Off Built for Control
When the job demands total control — from pickup to drop — the RawMaxx RDX GN delivers. Available in 14’, 16’, 18’, and 20’ lengths with a 14,000 lb. GVWR, this gooseneck roll-off system is engineered to handle heavy bins, flatbeds, and demanding workflows with confidence and ease.
At its core, the RDX GN is built on a massive 10″ I-beam main frame and a reinforced 10″ I-beam gooseneck, paired with heavy cross-members and diamond plate fenders for long-term durability. With over 12,300 lbs. of load capacity, dual 7,000 lb. axles, and a 6-leaf spring suspension, it’s designed to stay planted and predictable under real working loads.
The hydraulic system sets the RDX GN apart. A heavy-duty scissor lift, 6″ x 20″ cylinder, and KTI 12V pump deliver a commanding 55° tilt angle, giving you smooth, controlled loading and unloading every time. The integrated 17,500 lb. electric winch, spring-loaded latch system, and roll-off rollers make bin handling fast, precise, and repeatable — whether you’re running roll-off boxes or a flatbed configuration.
Safety and readiness are built in. The RDX GN comes standard with G70 safety chains, electric brakes, LED lighting, an all-weather wiring harness, onboard battery with trickle charger, and dual 10,000 lb. jacks for rock-solid stability. With available bin packages, axle upgrades, hydraulic jacks, wireless remote control, and tarp options, the RDX GN can be configured to match how you work.
The RawMaxx RDX GN — controlled, capable, and built to move serious work without compromise.
FEATURES:

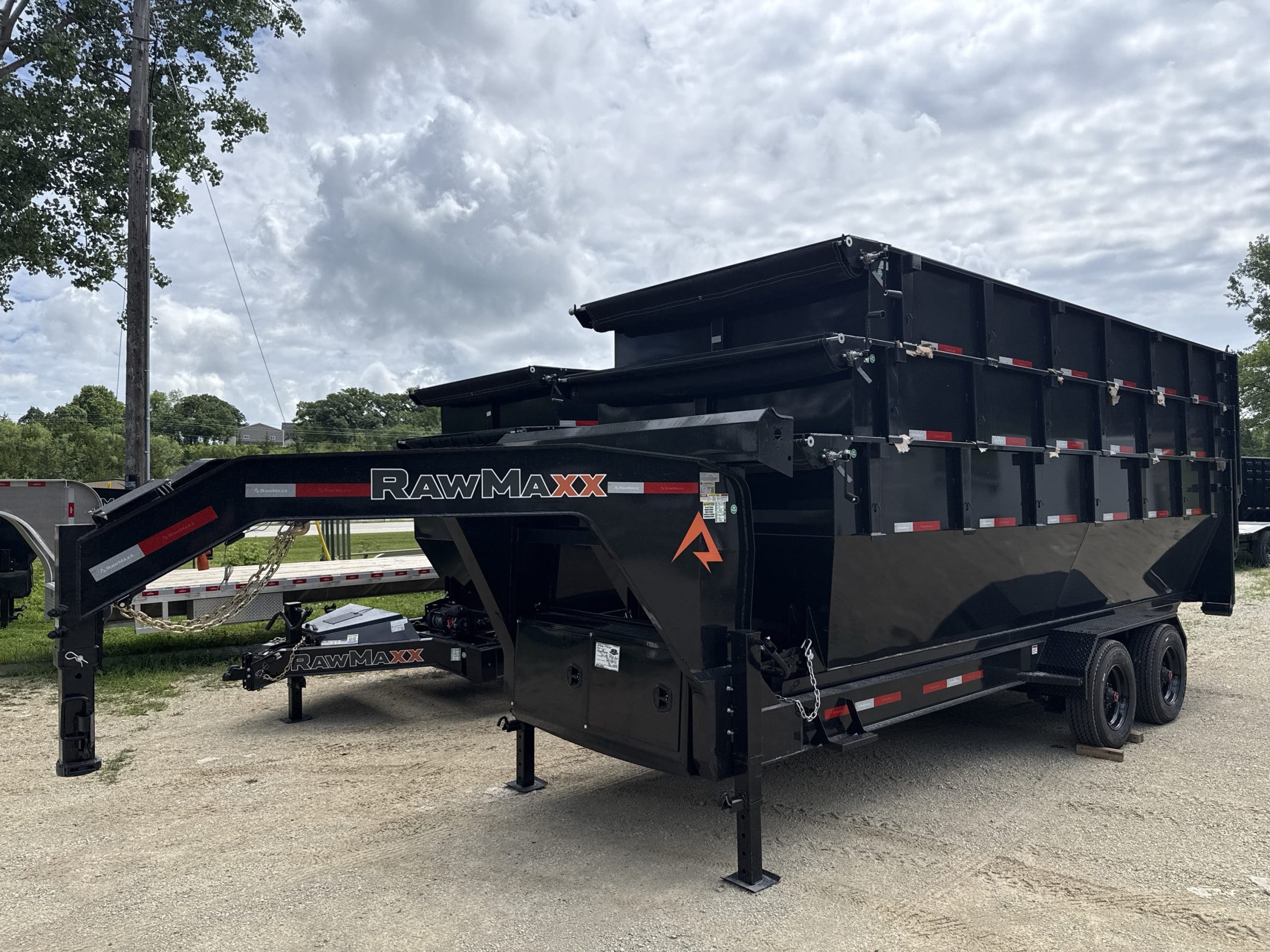

- 20X83 GOOSENECK ROLLOFF TRAILER

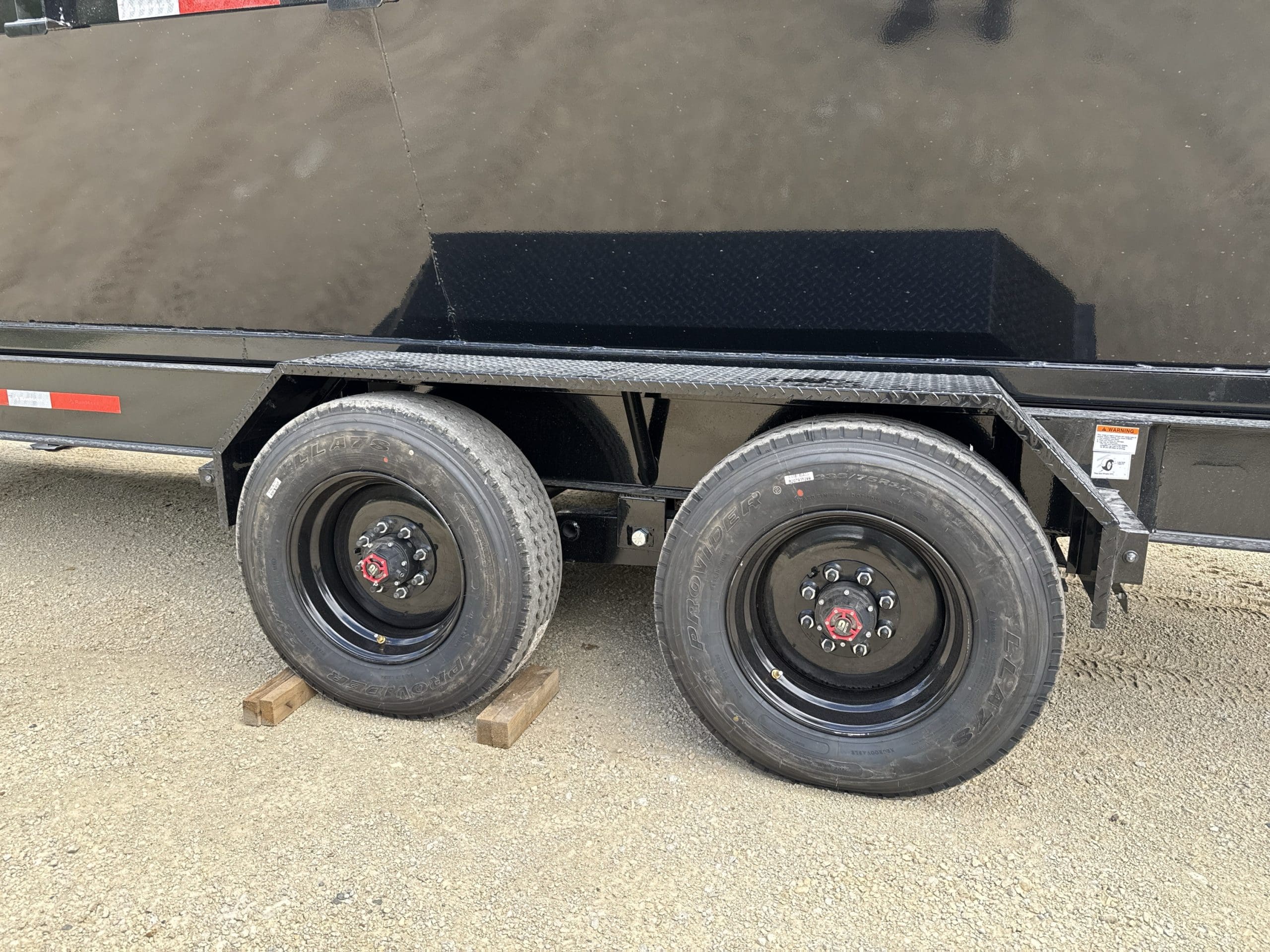

- 2-10,000 LB AXLES

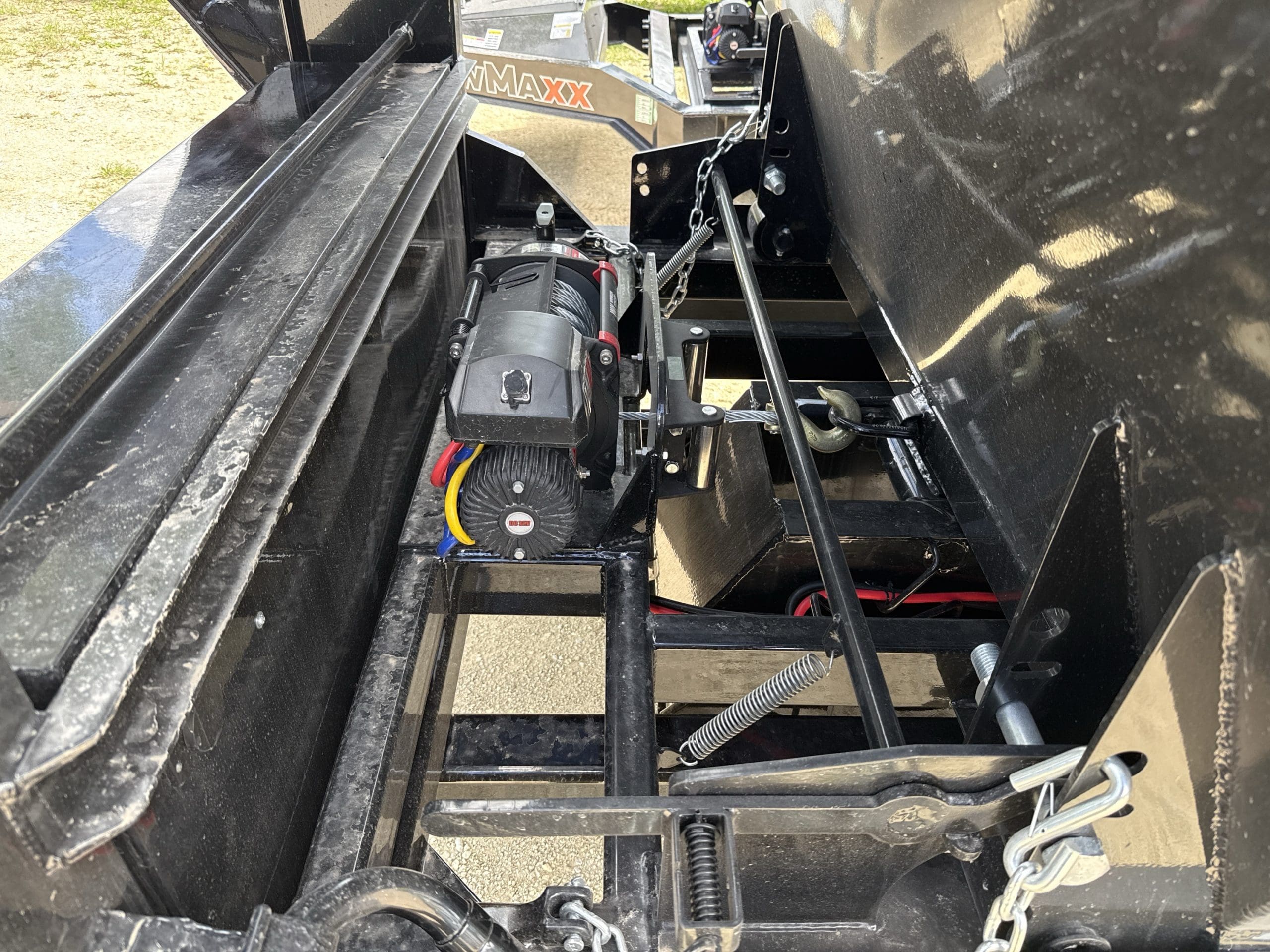

- 17,500 POUND ELECTRIC WINCH
- HYDRAULIC POWER UP AND DOWN

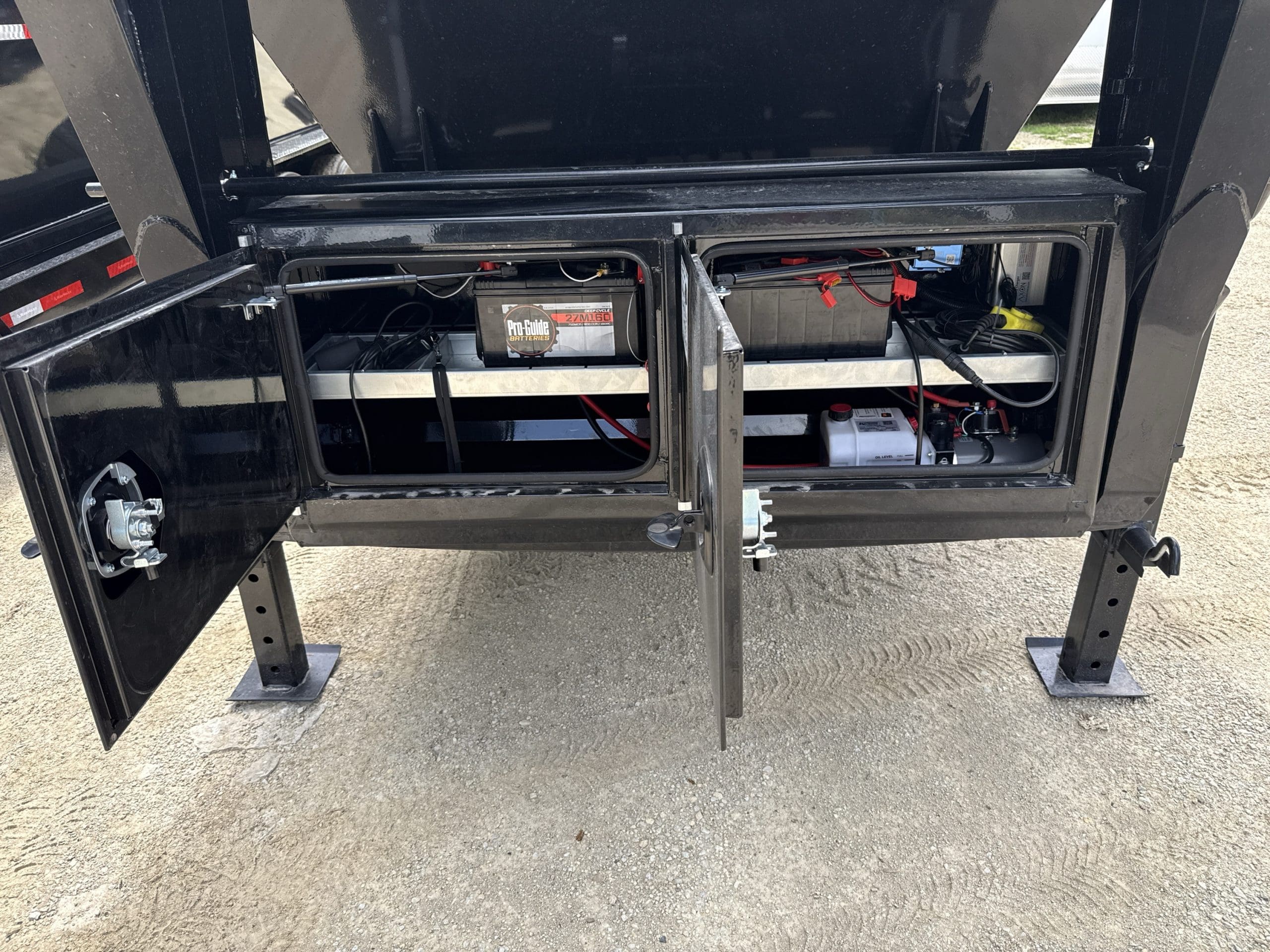

- FRONT TOOL BOX BETWEEN THE RISERS

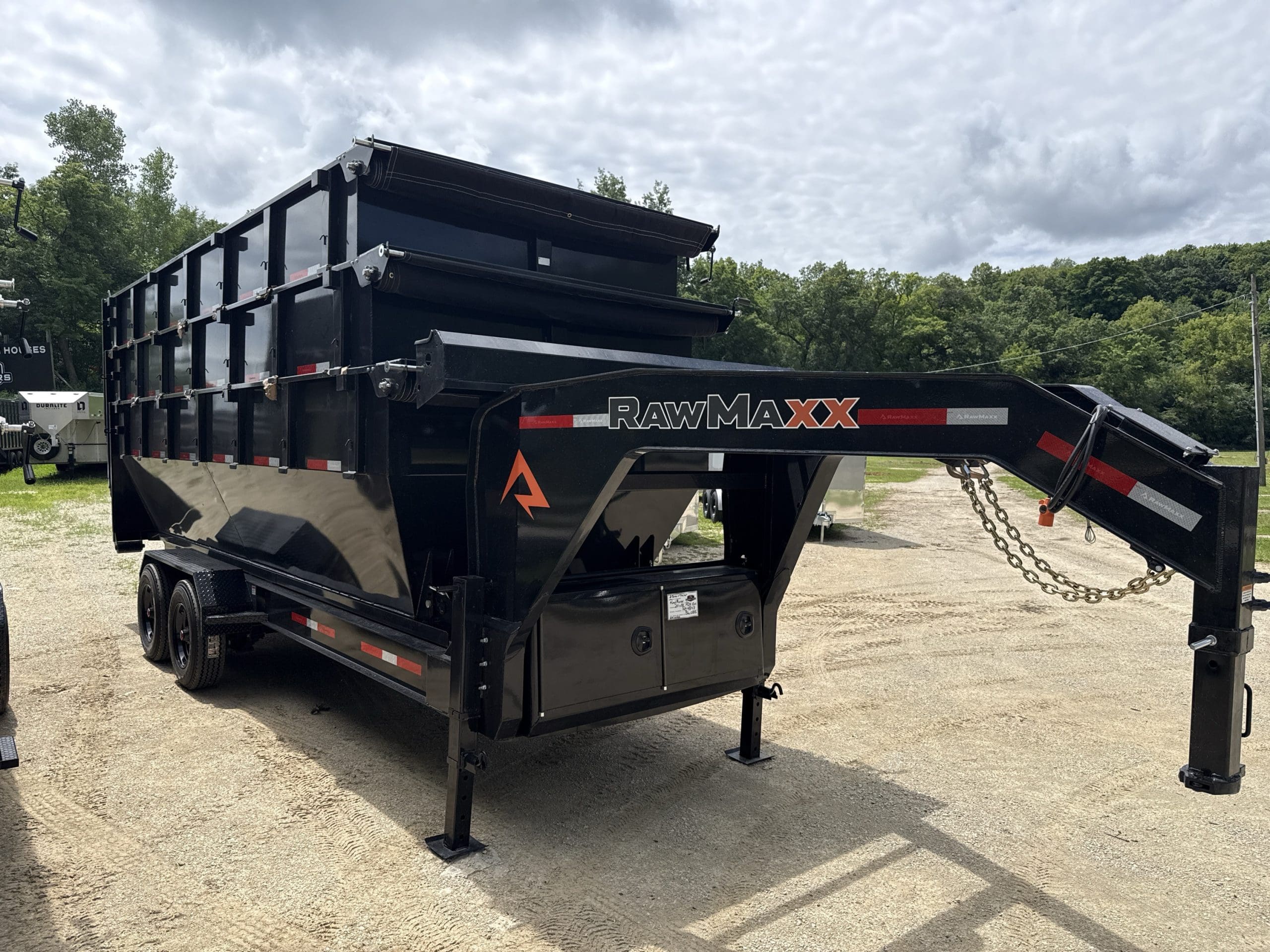

- GRADE 50 ONE PIECE GOOSENECK
- 17.5Â 18 PLY TIRES
- SPARE TIRE AND MOUNT

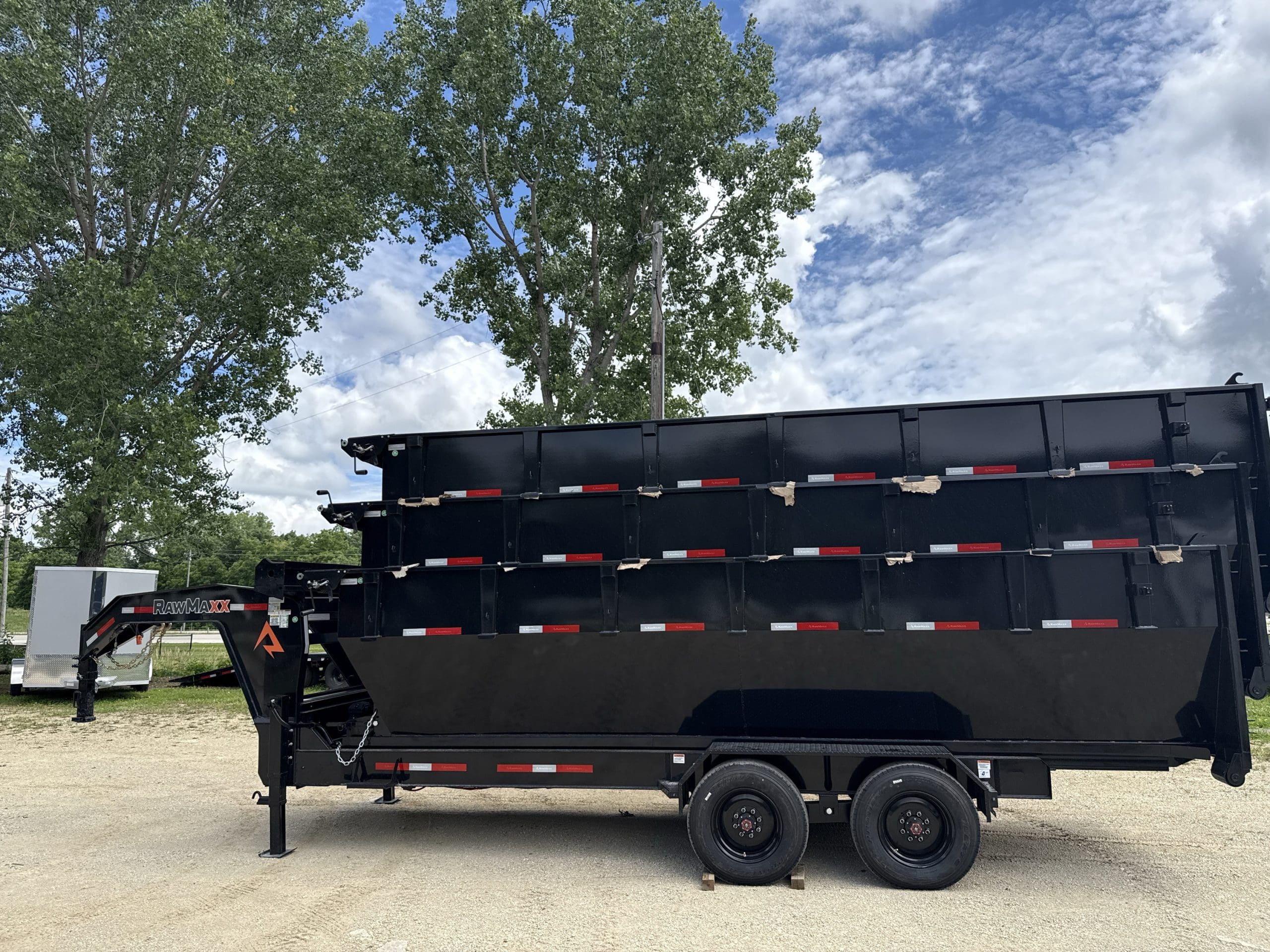

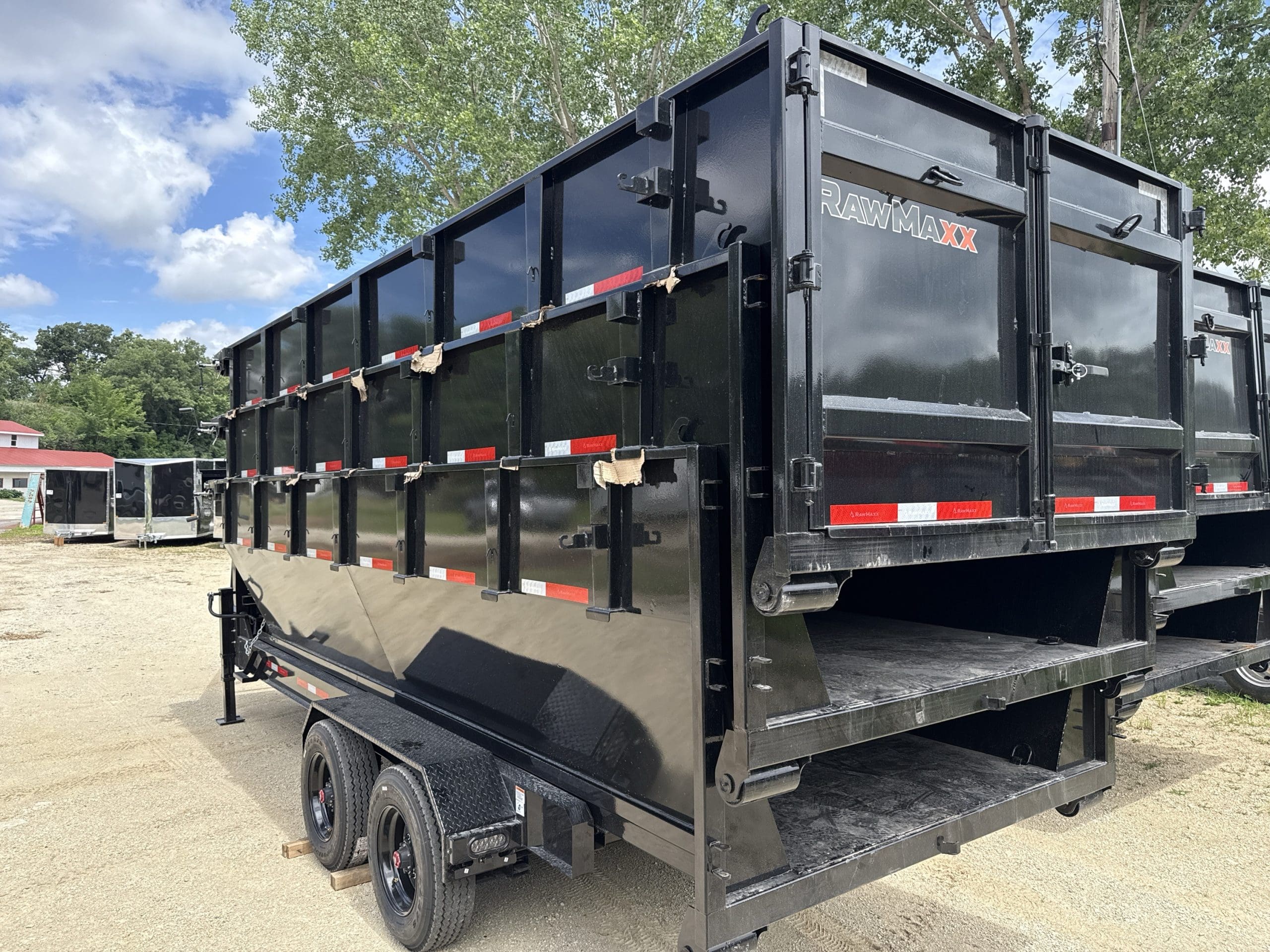

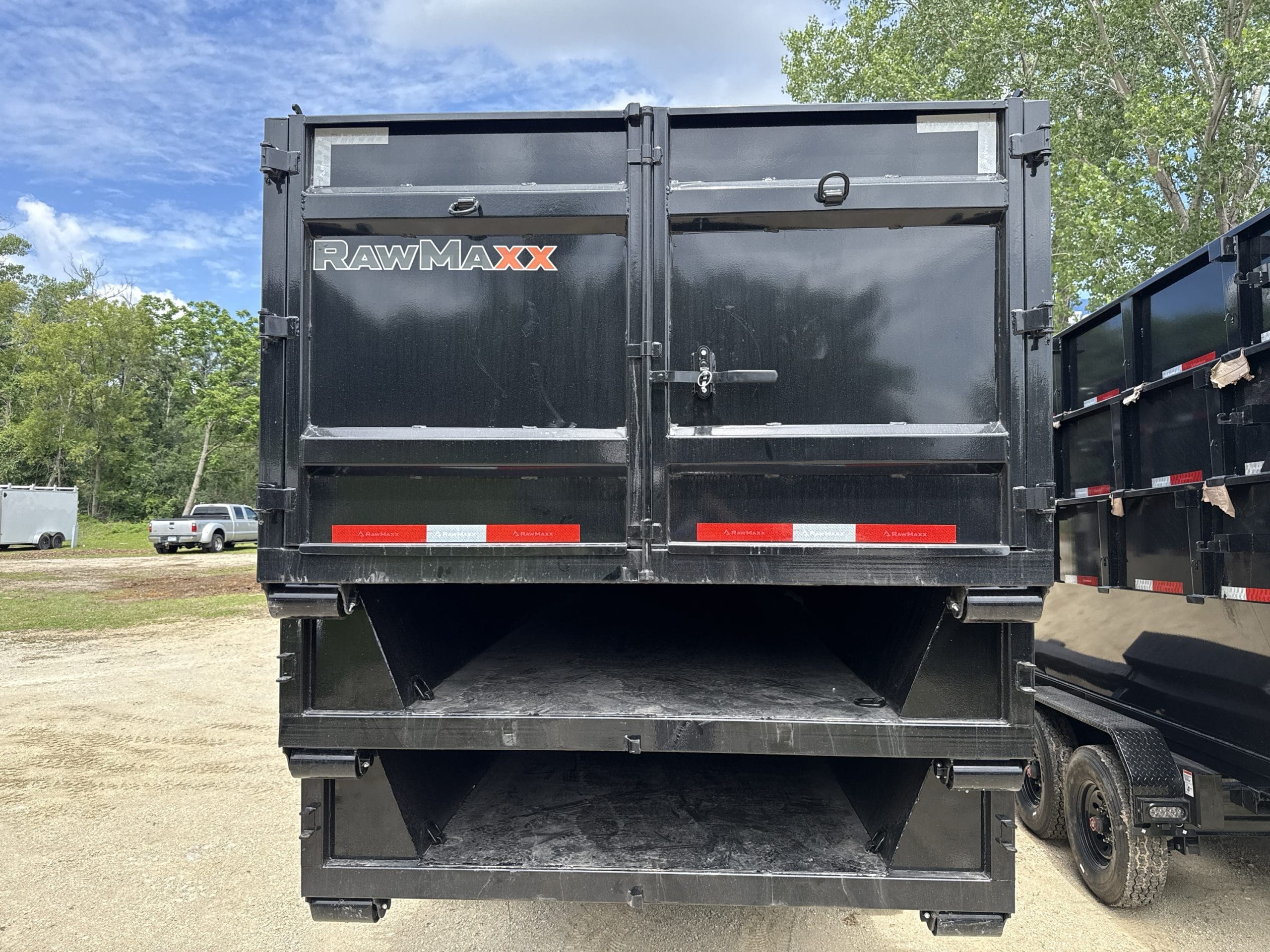

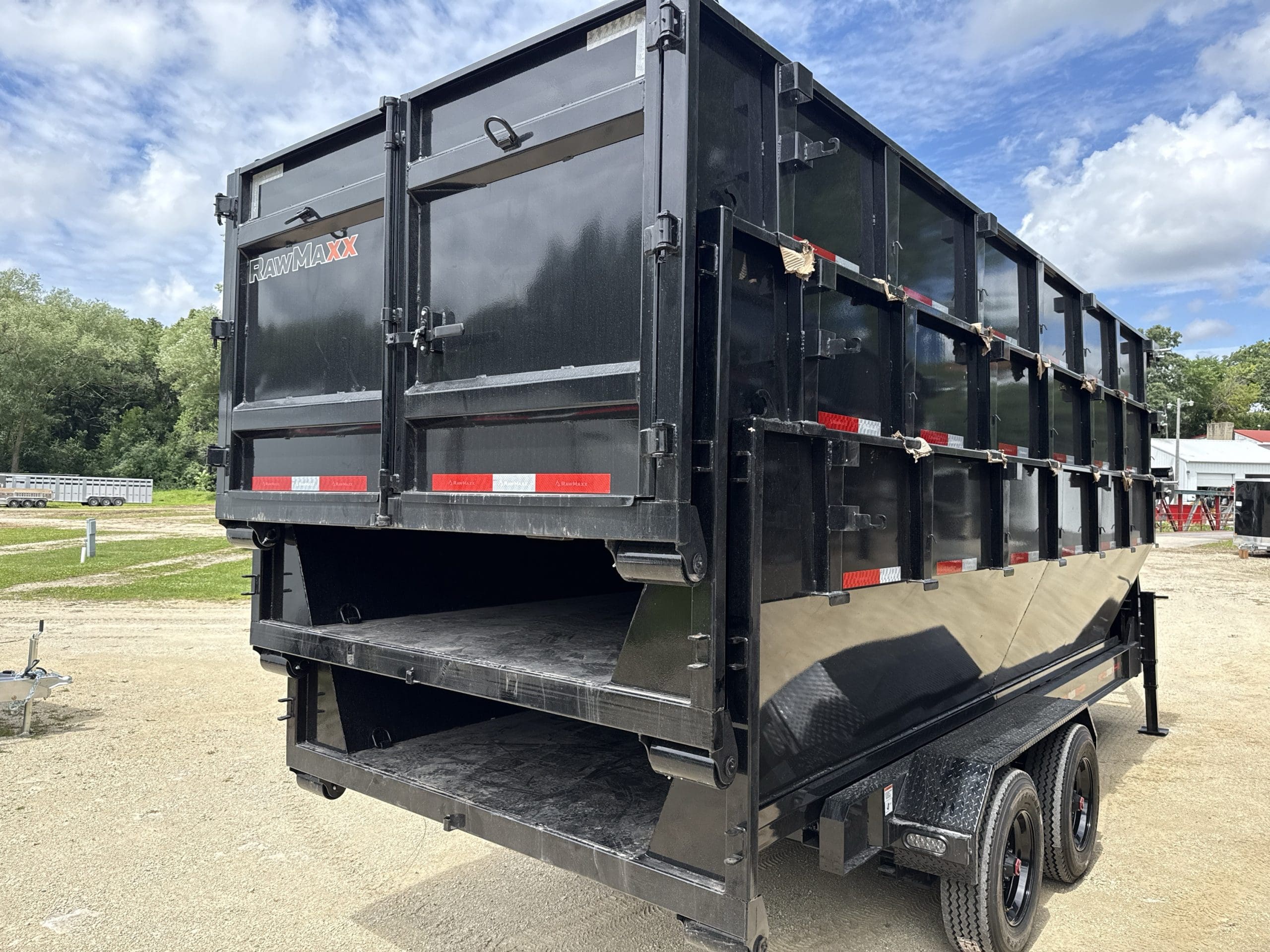

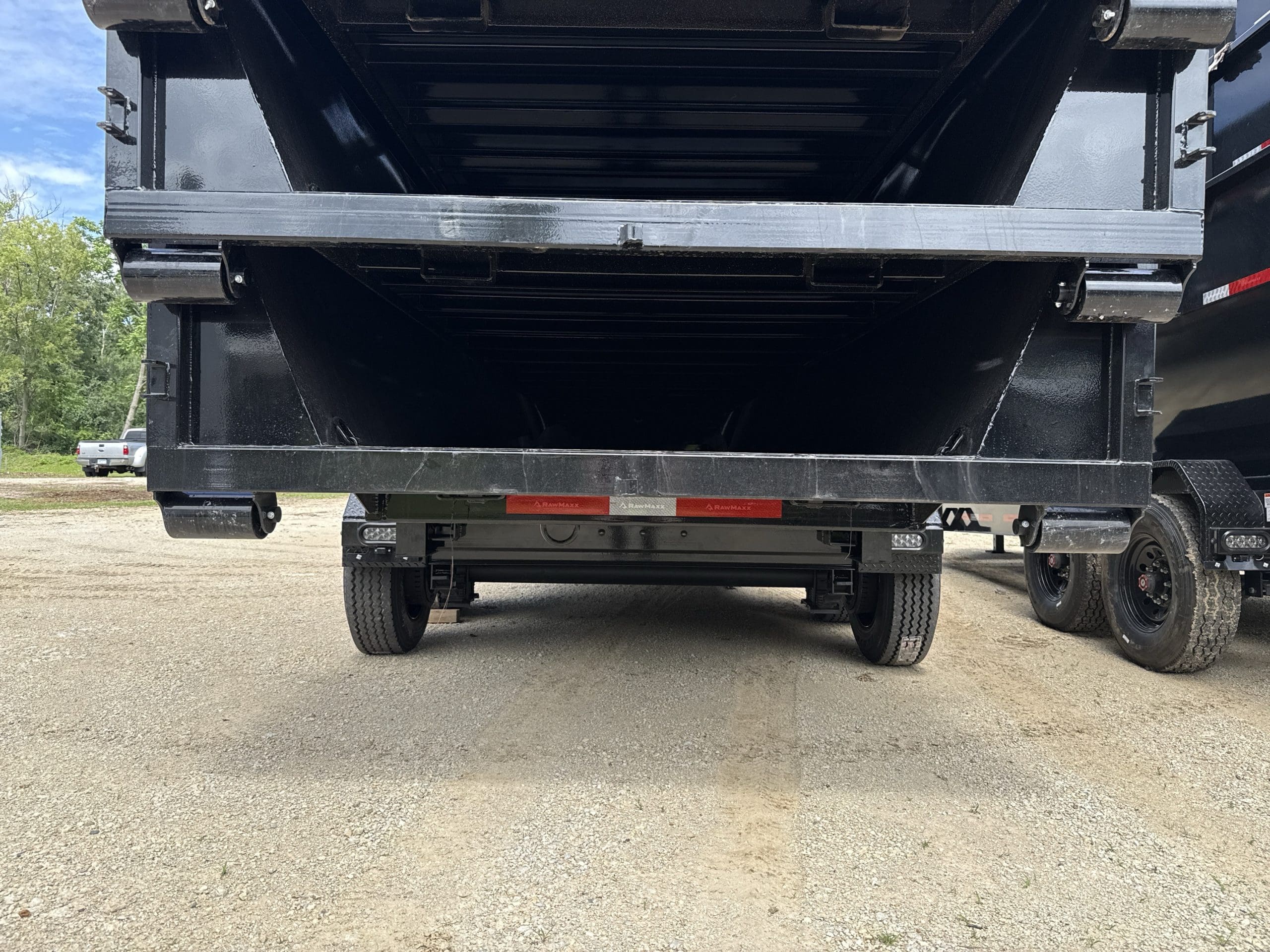

3 RDX20BOXXÂ ROLLOFF BINS WITH MANUAL TARPS
